Extremely low fuel consumption. Comfort beyond the ordinary.
That is the Angus E44.
Built to workboat standard with refined details. Quality and usability in focus.

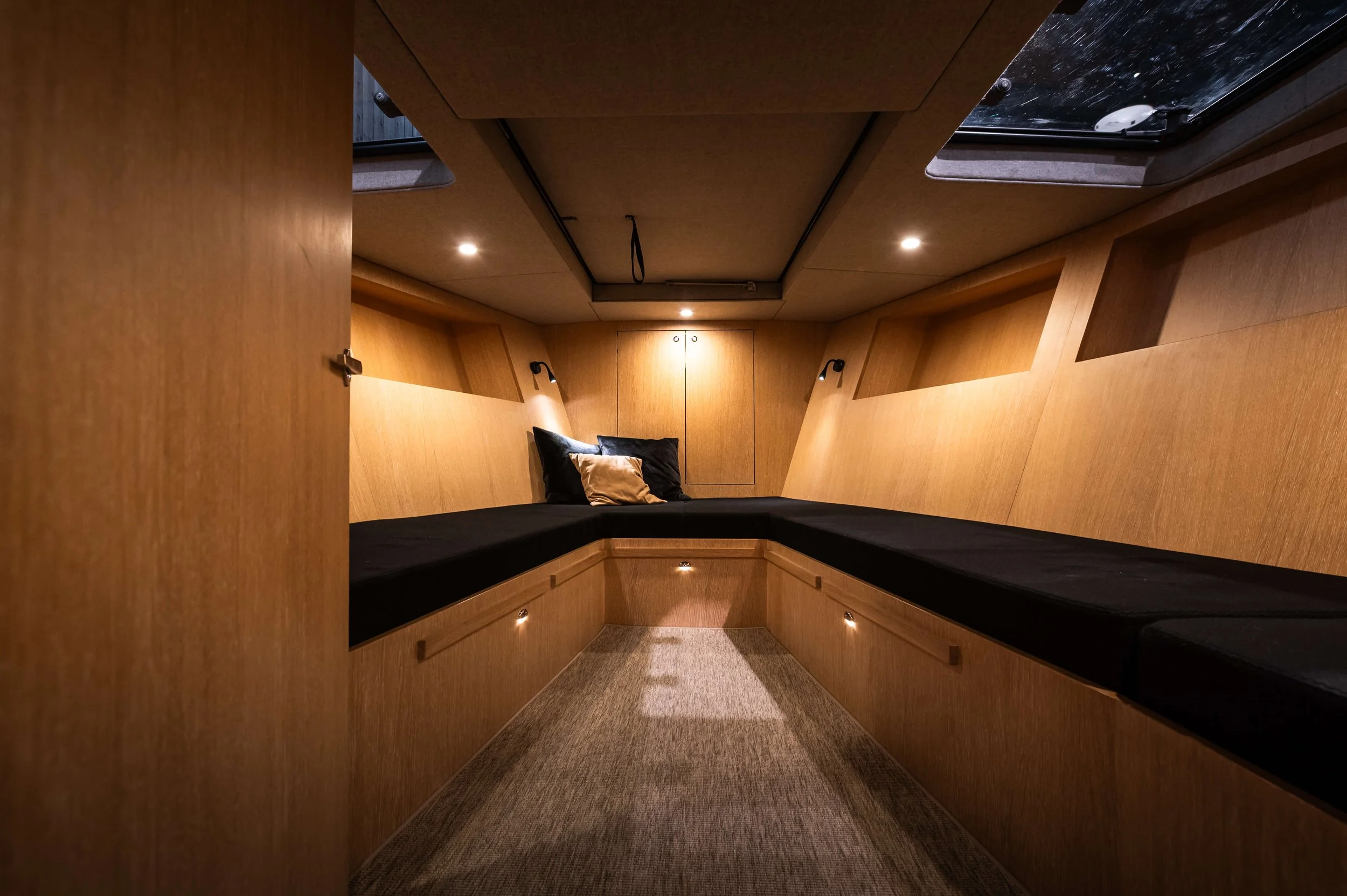

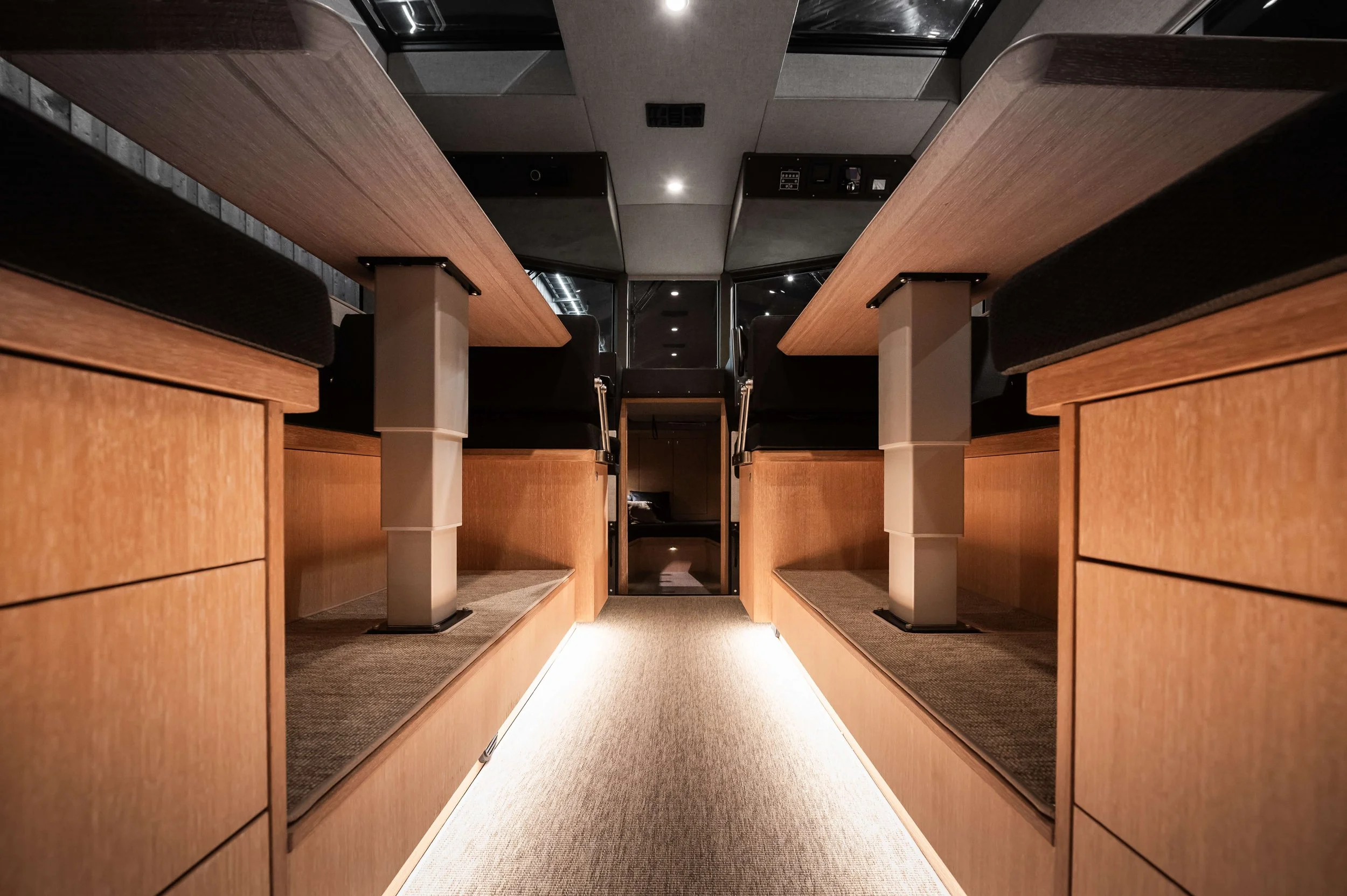

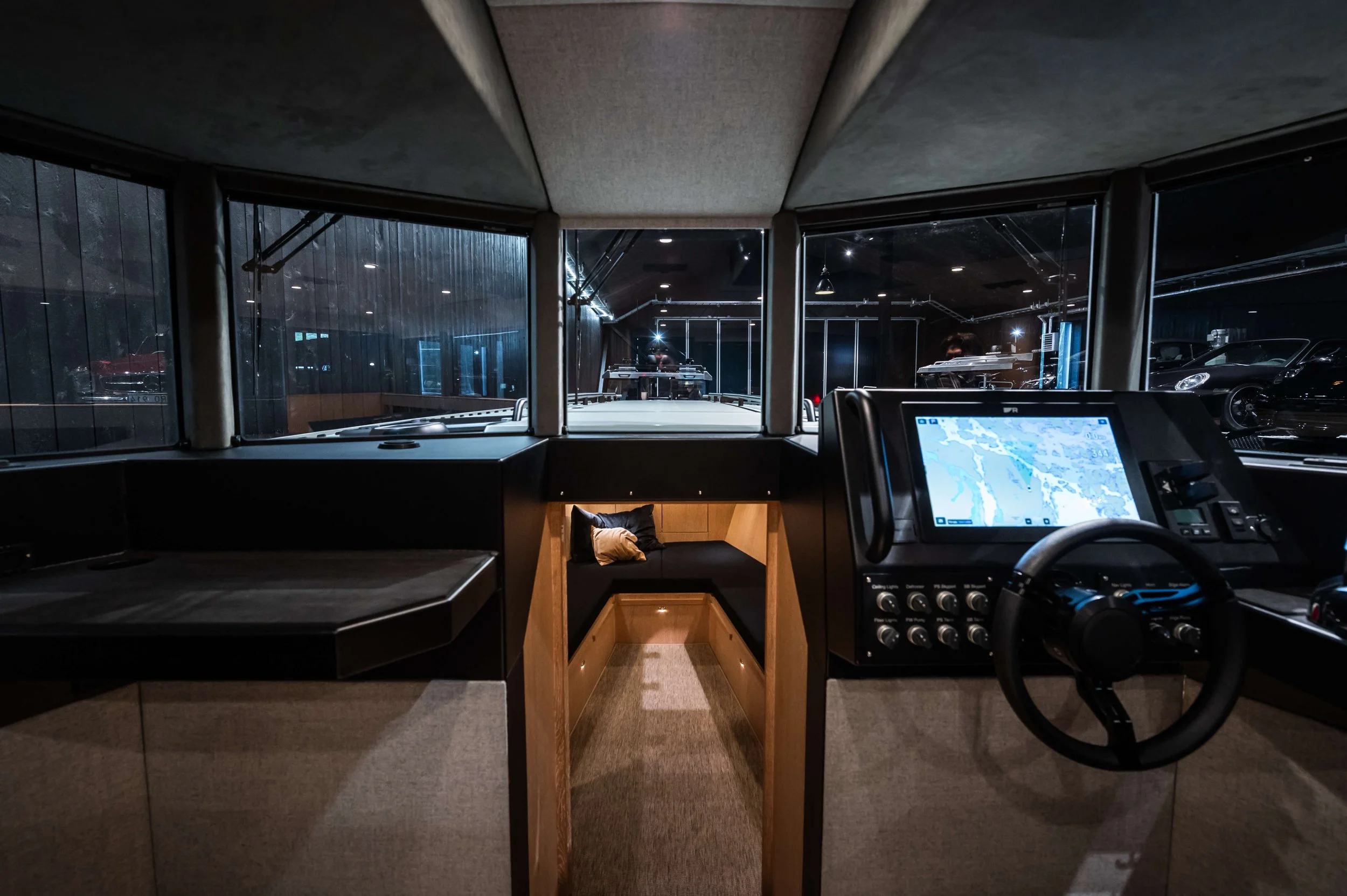

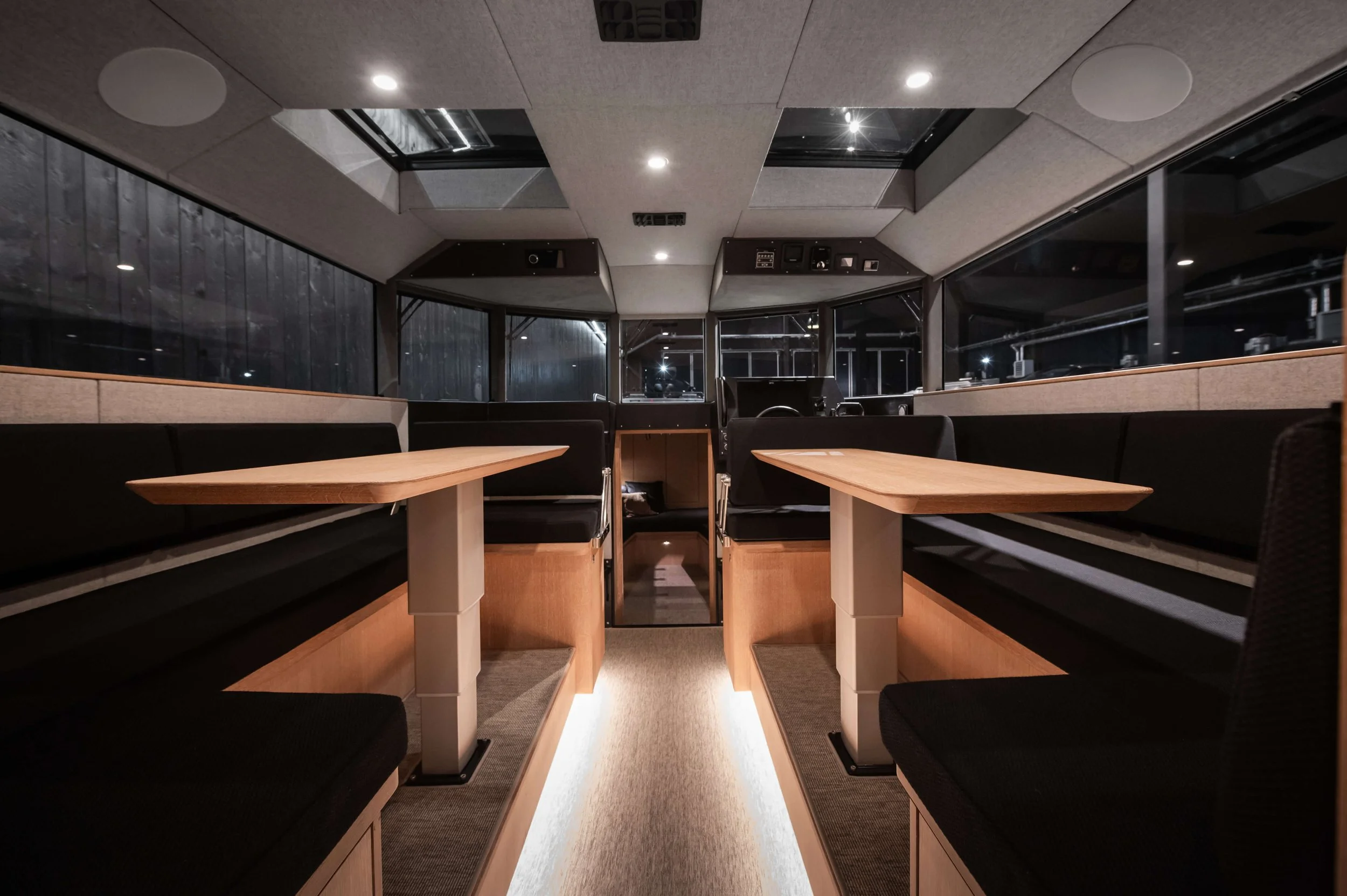

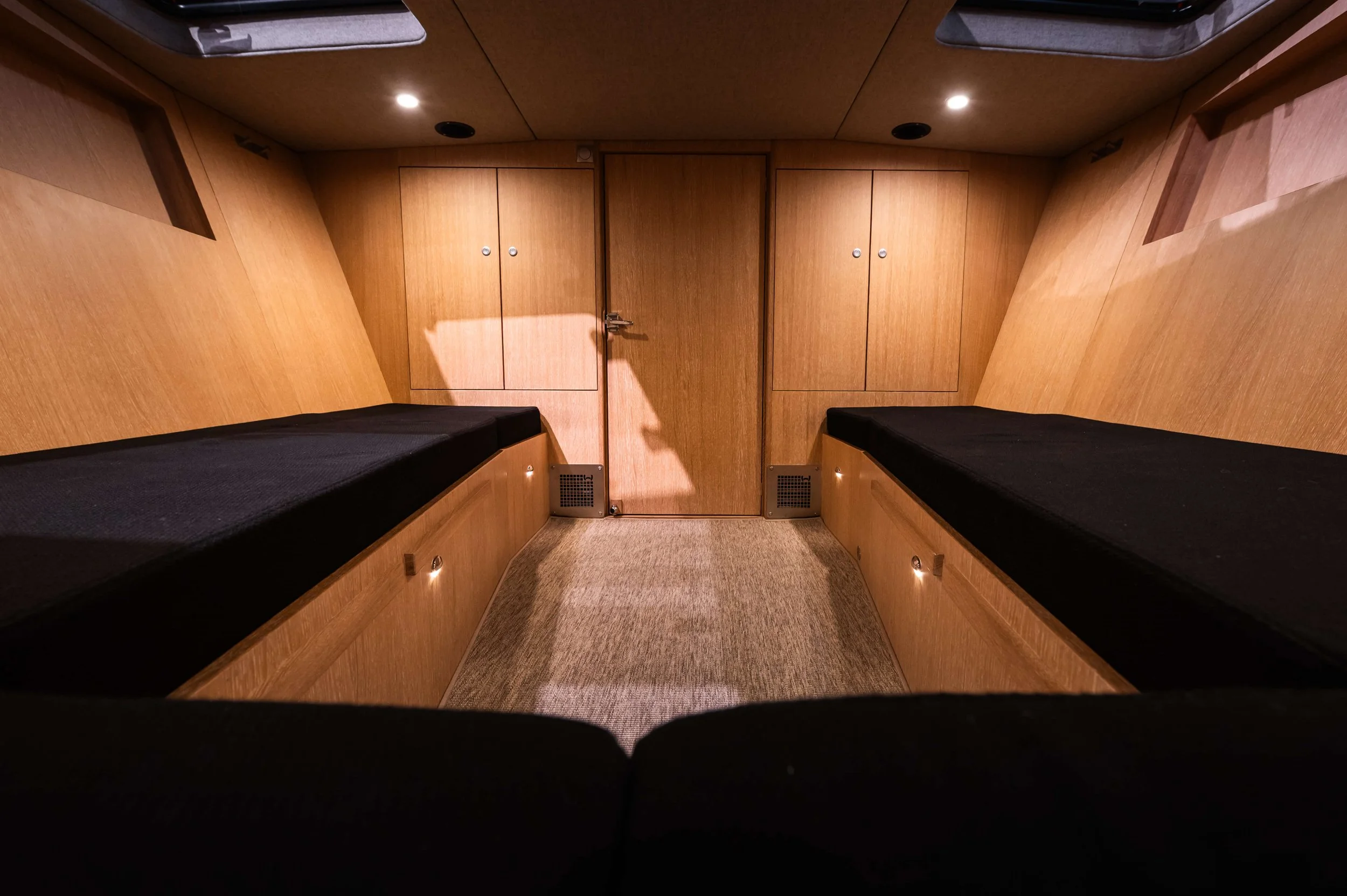

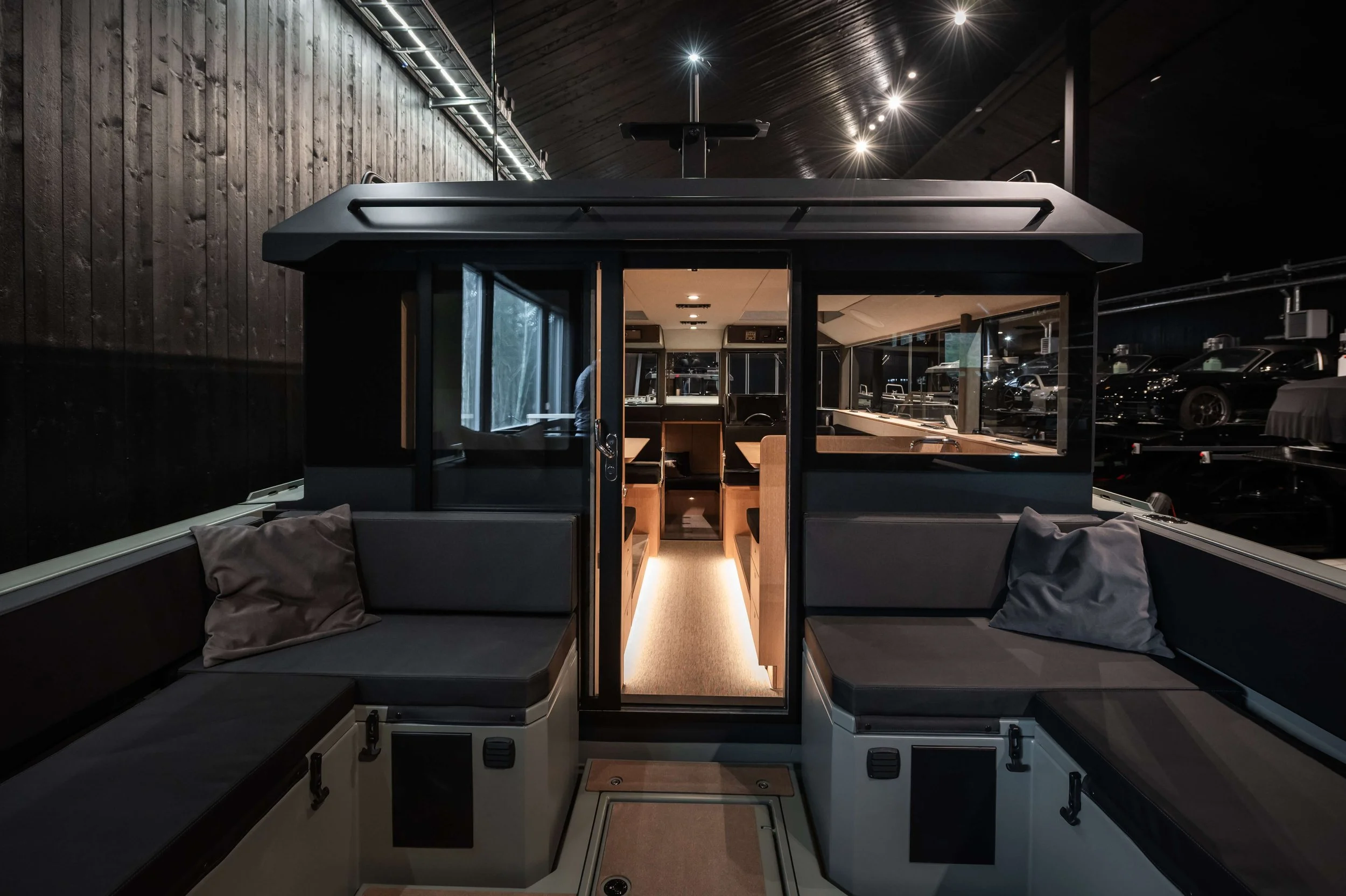

Spacious social areas both inside and out, exclusive material choices, a comfortable sleeping cabin and of course it's super quiet in the cabin.
Highly efficient E-Hydro™ hull with steps and some other secrets....
Painted with a high finish in any colour.

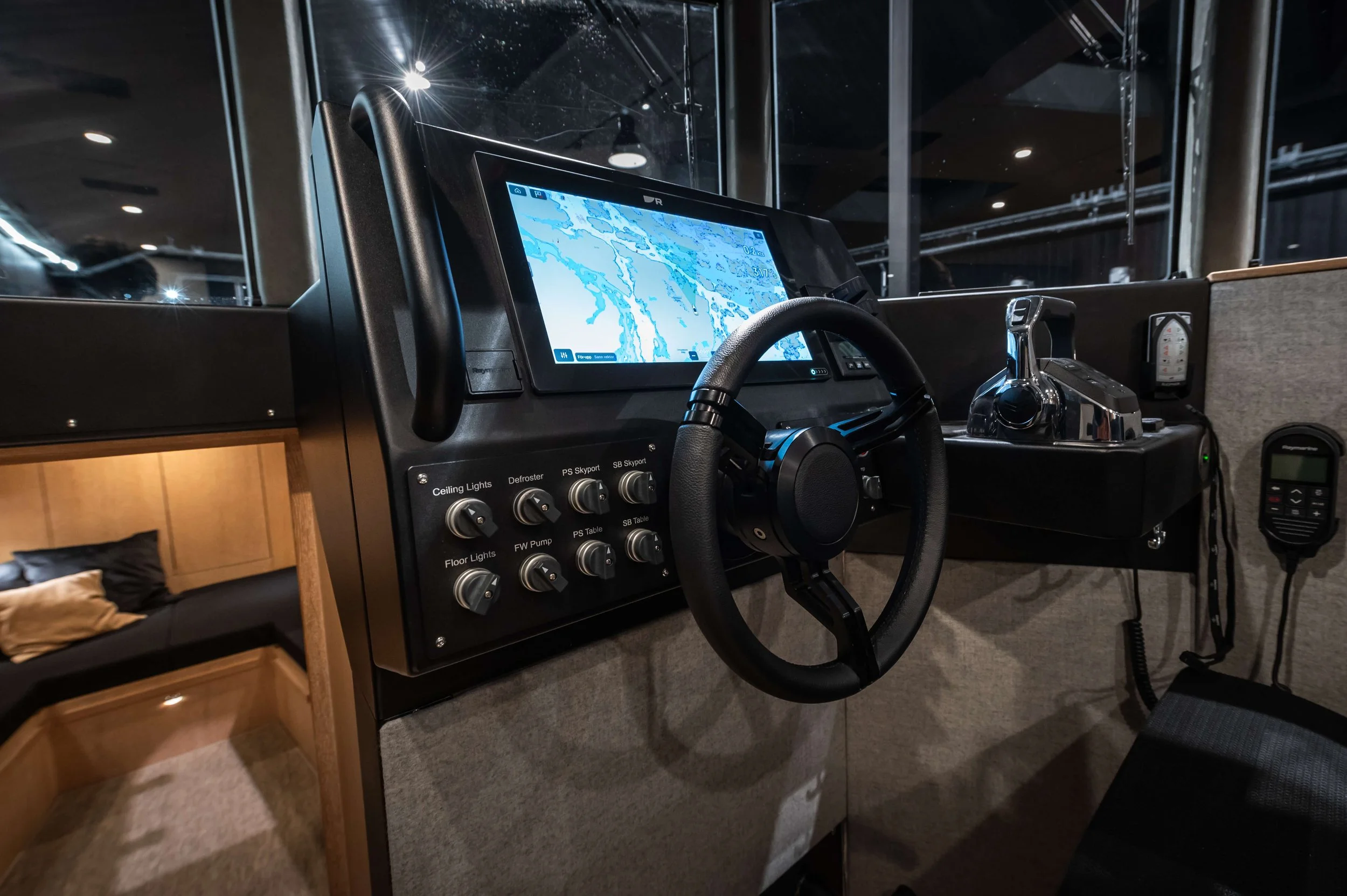

Bow and stern thrusters with joystick for convenient maneuvering and docking.
Angus E is not an ordinary boat.
We have developed a super-efficient hull, it is a mono hull with steps and very efficient spray rails.
There is no foils or other mechanics. It is just effective, and we named it E-Hydro™
The Angus E44 is our first model in a coming model range between 11 and 16 meters.
Soft Silence™

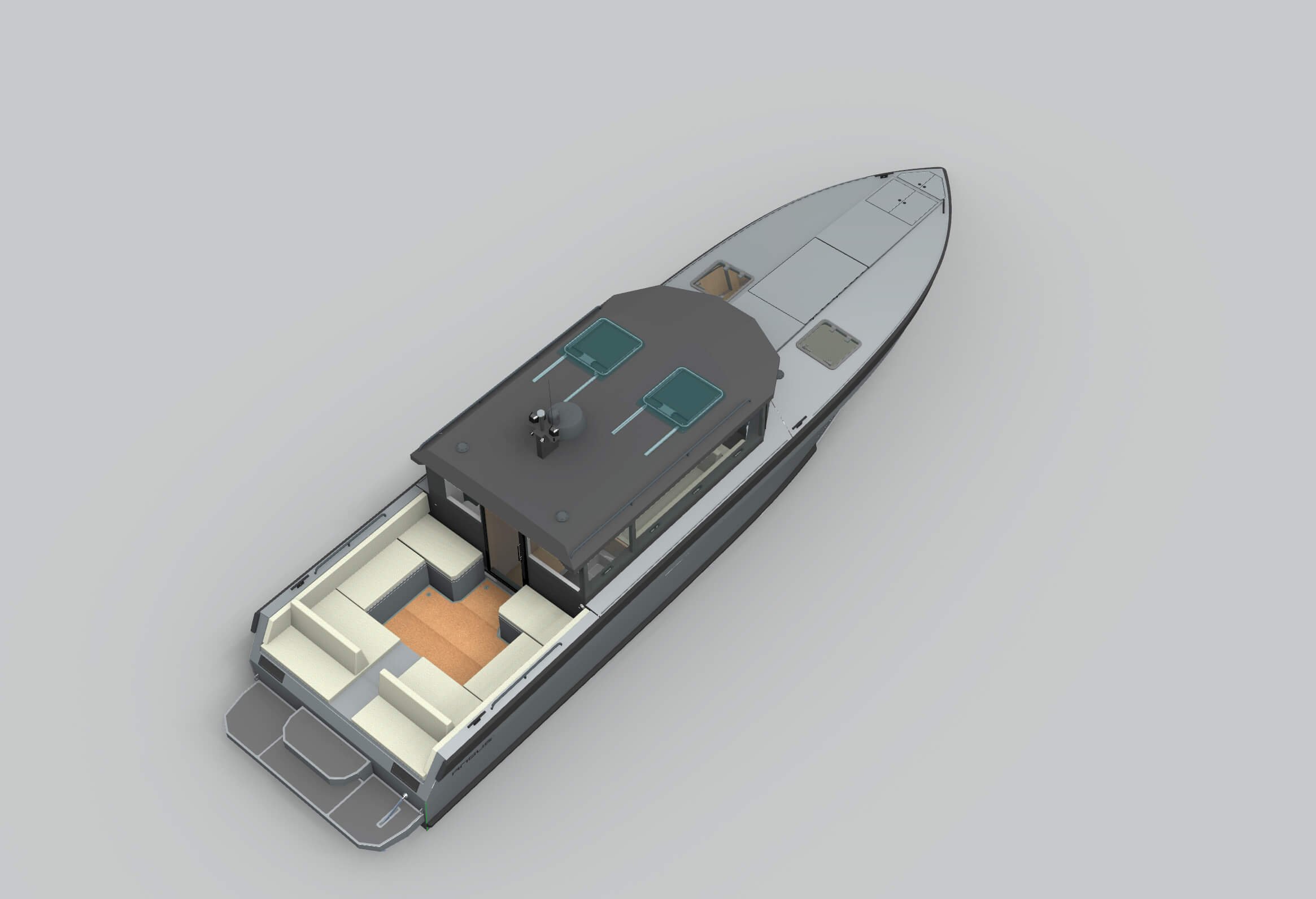

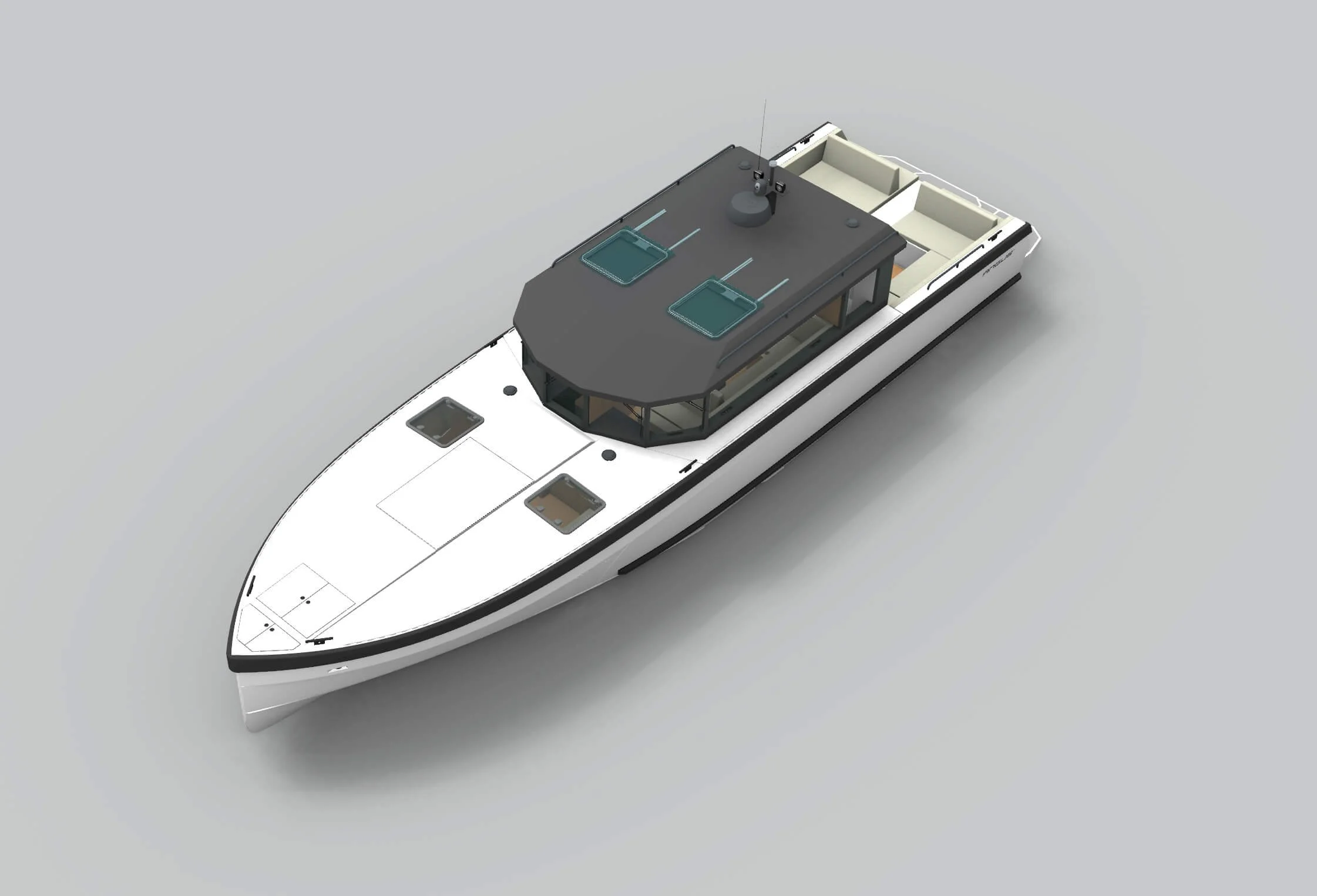

Layout and Specifications
Angus E44 Cabin
Specification:
Length OA: 13.30 m (w swim platform)
Length hull: 12.50 m
Width: 3.40 m
Engine & Propulsion: Yanmar 8LV-370/ZT
Fuel capacity: 500 L
Dry weight: 5100 kg
Full load weight: 6500 kg
Top speed: 40 kn
Cruising speed: 20-35 kn
CE Class: B
Seating wheelhouse: 10
Sleeping: 2+2
Fresh water: 200 L
Black water: 50 L
Draft: 0.45 - 0.90 m
Bridge clearance: 3.30
E-Hydro™
Soft Silence™

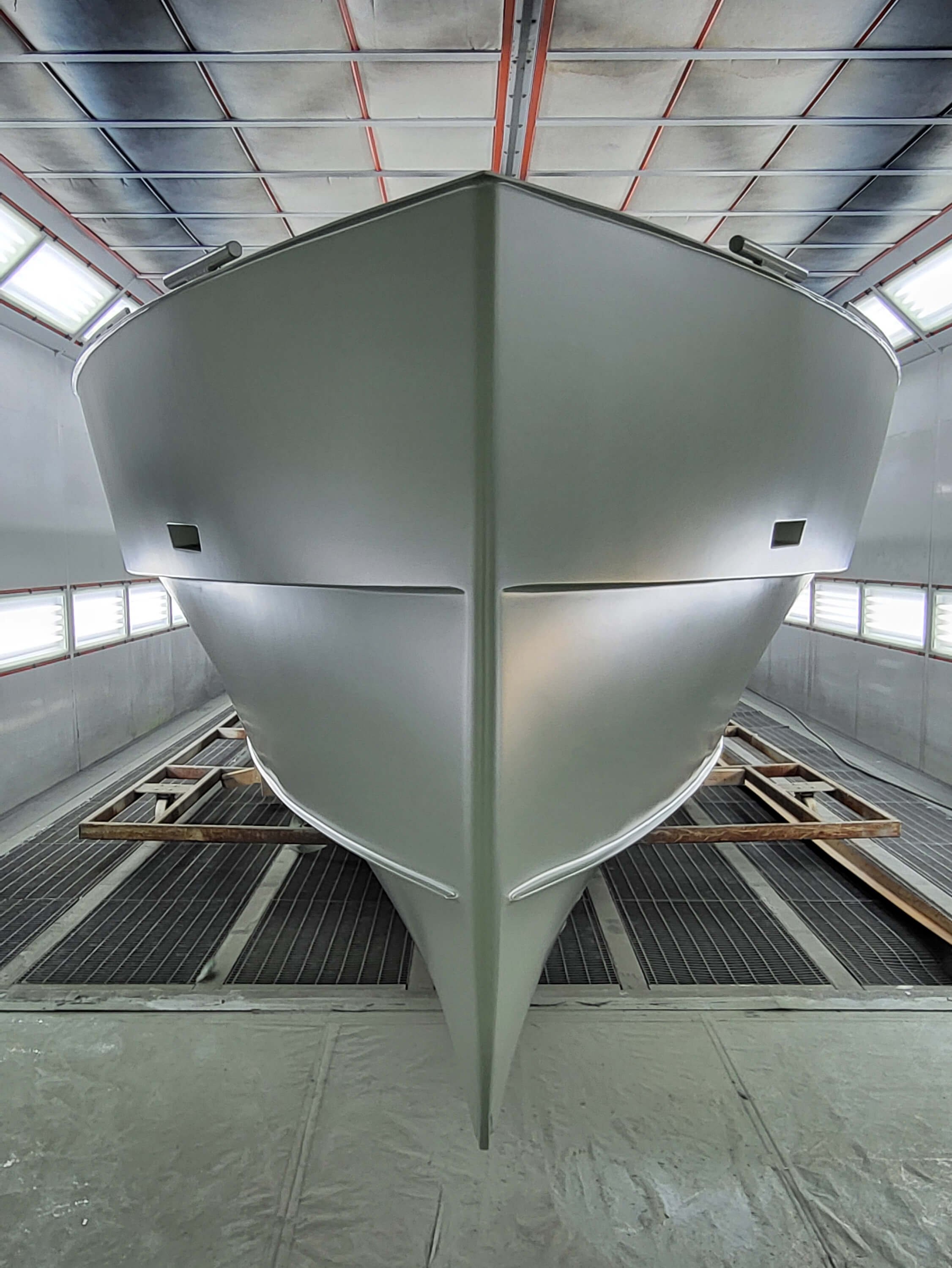

In the paint booth
E-Hydro™
E-Hydro™ is our new hull design for low fuel consumption and high onboard comfort.
We have developed a new V-hull design that has a very low resistance compared to conventional planing V-hulls. The design is based on taking in air under the hull and getting a high planing position which together reduces the wet surface and gives a low resistance through the water. Nothing really new about it, but we have managed to achieve harmony between all components and maintain good seaworthiness, stability and comfort, still with a low energy consumption.
The E-Hydro design needs only half the power of a conventional V-hull of the same size and weight. The hull is designed to go with a flat trim angle, cut like a knife through the water and perform with dignity like a cruiser.
Our first boat with an E-Hydro hull is the Angus E44, which has a length overall of 13.3 meters and beam of 3.4 meters, the weight is 6 tons.
Cruising speed is between 20 and 30 knots and with a single installation of 370 hp we reach a top speed of 40 knots.
The fuel consumption at 30 knots is only 1.5 liters per nautical mile.
We call it E-Hydro!
