Technical Specification:
A10 Cabin - Outboard
Length o.a: 10.20 m (w aft platform) Length hull: 9.60 m
Width: 3.09 m
Length WL: 8.45 m
Fuel capacity: 800 L (2x400L)
Recommended Power: 2x200 - 2x450 hp
Dry weight: 4 520 kg, (2x450 hp)
Operational weight: 5 936 kg (6 pax, full load)
Draft: Full load: 0.97 m - 0.62 m
Bridge Clearance: 3.40 m
Fresh water: 85 L
Black water: 30 L
Seating: 6
Sleeping: 2
CE class: B - DNV (max 2x300 hp)
CE class: C - DNV (2x450 hp)
Soft Silence™
Technical Specification:
A10 Cabin - Inboard
Length o.a: 10.20 m (w aft platform) Length hull: 9.60 m
Width: 3.09 m
Length WL: 8.45 m
Fuel capacity: 500 L
Recommended Power: 380 - 440 hp
Dry weight: 4 835 kg, (VP D6-440)
Operational weight: 6 062 kg (6 pax, full load)
Draft: Full load: 1.08 m - 0.59 m
Bridge Clearance: 3.40 m
Fresh water: 85 L
Black water: 30 L
Seating: 6
Sleeping: 2
CE class: B - DNV
Soft Silence™
Flexible layout with
modular system
Image gallery

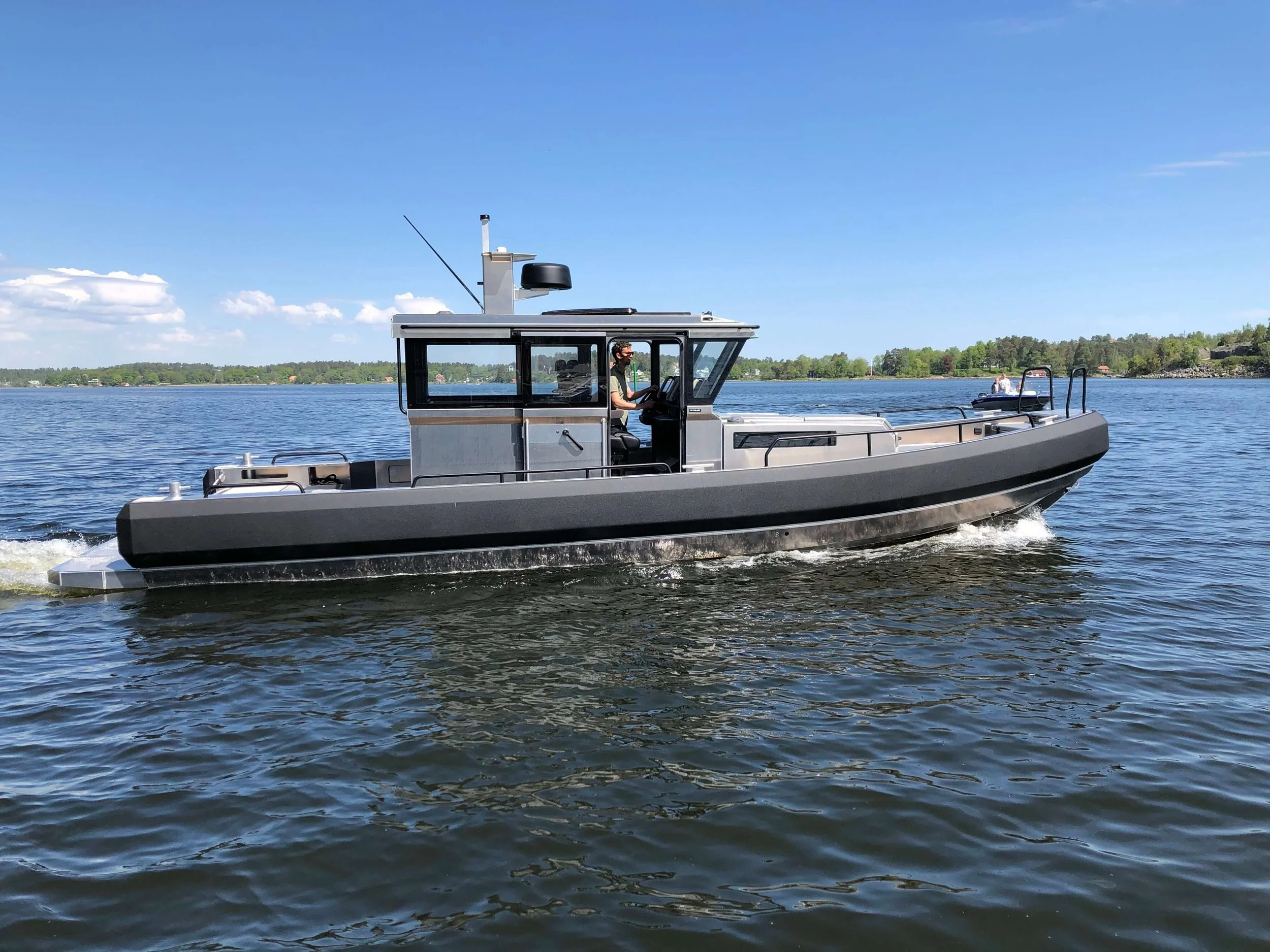

Angus A10 Cabin - Inboard
Angus A10 Cabin - Outboard
